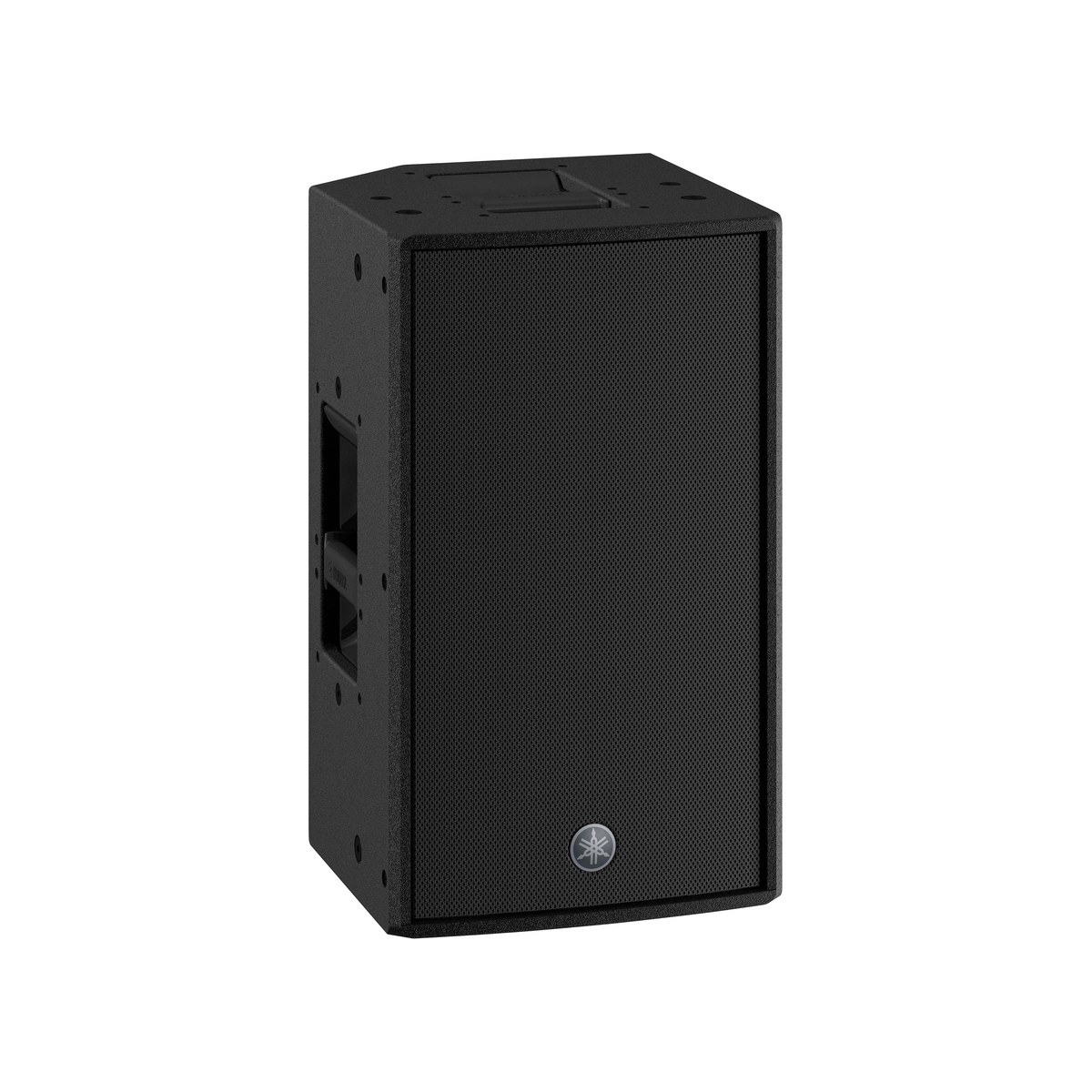

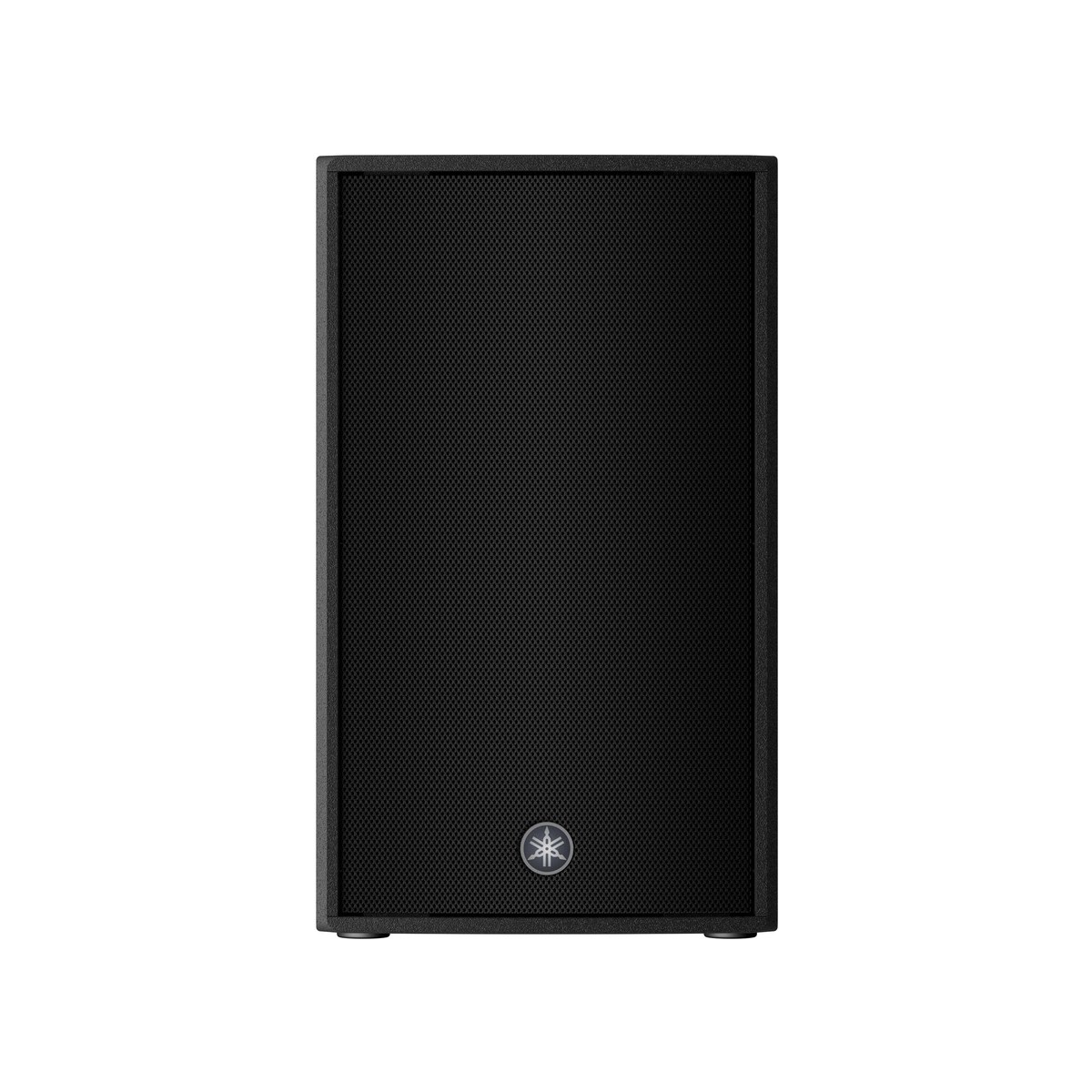

2-way 패시브/Bi-amp
10인치 LF 콘 + 1인치 HF 컴프레션 드라이버(2인치 보이스코일) 2-way, 패시브/Bi-amp 겸용 구성
CD Waveguide Horn
야마하 자체 Wide Dispersion CD Waveguide 혼으로 균일한 커버리지 구현, 혼 회전 가능
Floor Monitor
플로어 모니터 각도 50°, 모니터 겸용 설정 지원
마운팅
듀얼앵글 폴소켓, 리깅포인트 다수, U-브라켓 옵션(UB-DZR10H/V)으로 유연한 설치
-
Speaker Type
2-way Speaker, Bass-reflex
-
Frequency Range(-10dB)
Passive 43Hz-20kHz, FOH 43Hz-20kHz
-
Coverage Area
H90 x V60 Rotatable Const. Directivity Horn
-
Floor Monitor Angle
50°
-
LF Components
10인치 Cone, 3인치 Voice Coil, Neodymium
-
HF Components
2인치 VC, 1인치 Compression Driver, Titanium
-
Crossover
2.5kHz
-
Power NOISE
Passive 350W, Bi-amp LF 350W/HF 50W
-
Power PGM
Passive 700W, Bi-amp LF 700W/HF 100W
-
Power PEAK
Passive 1400W, Bi-amp LF 1400W/HF 200W
-
Nominal Impedance
Passive 8Ω, Bi-amp LF 8Ω/HF 16Ω
-
SPL Sensitivity(1W1m)
Passive 95dB, Bi-amp LF 95dB/HF 108dB
-
SPL Peak(Calc.)
Passive 127dB, Bi-amp LF 127dB/HF 131dB
-

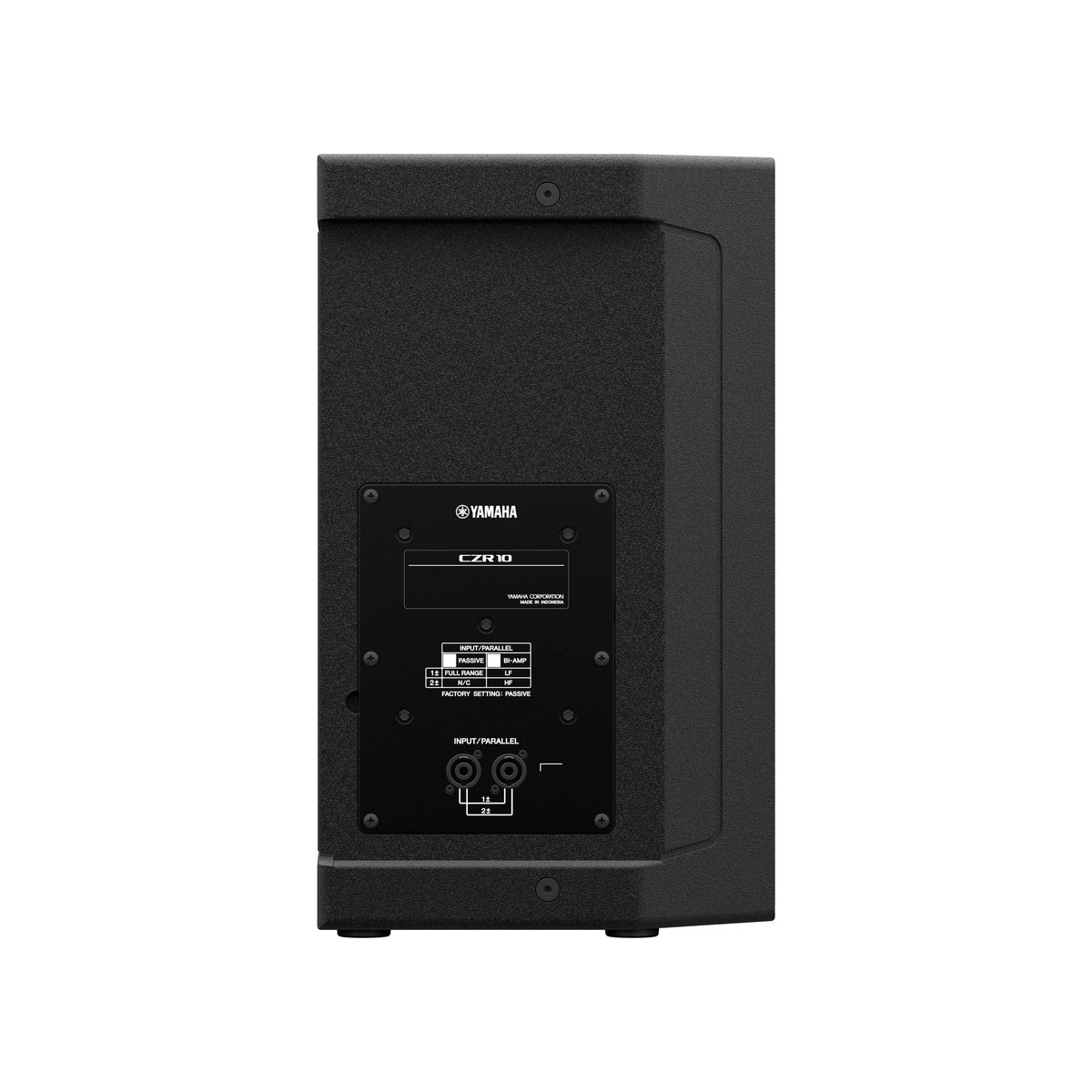

I/O Connectors
SpeakON NL4MP x2 (Parallel)
-
Handle
Aluminium die-cast, Top x1, Side x1
-
Pole Socket
Ø35mm x2 (0° or -7°)
-
Rigging
M10 x8, M8 x2
-
Dimensions(WxHxD)
315x537x345mm (12.4x21.1x13.6인치)
-
Net Weight
14.0kg (30.9lbs)
-
Options
Bracket UB-DZR10H/V, Cover SPCVR-DZR10
-
Enclosure
Plywood, Durable Polyurea coating, Black/White
