핵심 특징

상세 사양

• Speaker Type
  Coaxial 2-way, Bass reflex
• Frequency Range(-10dB)
  57Hz-20kHz (4π)
• Nominal Coverage
  75° conical (4π)
• Crossover Frequency
  3kHz
• LF Component
  8" (20cm) Cone
• HF Component
  1" (2.5cm) Soft dome
• Power NOISE
  90W
• Power PGM
  180W
• Power PEAK
  360W
• Nominal Impedance
  8Ω
• Transformer Taps 100V
  60W/30W/15W
• Transformer Taps 70V
  60W/30W/15W/7.5W
• Sensitivity(1W,1m)
  94dB SPL (4π)
• Peak SPL(Calc)
  120dB SPL (1m)

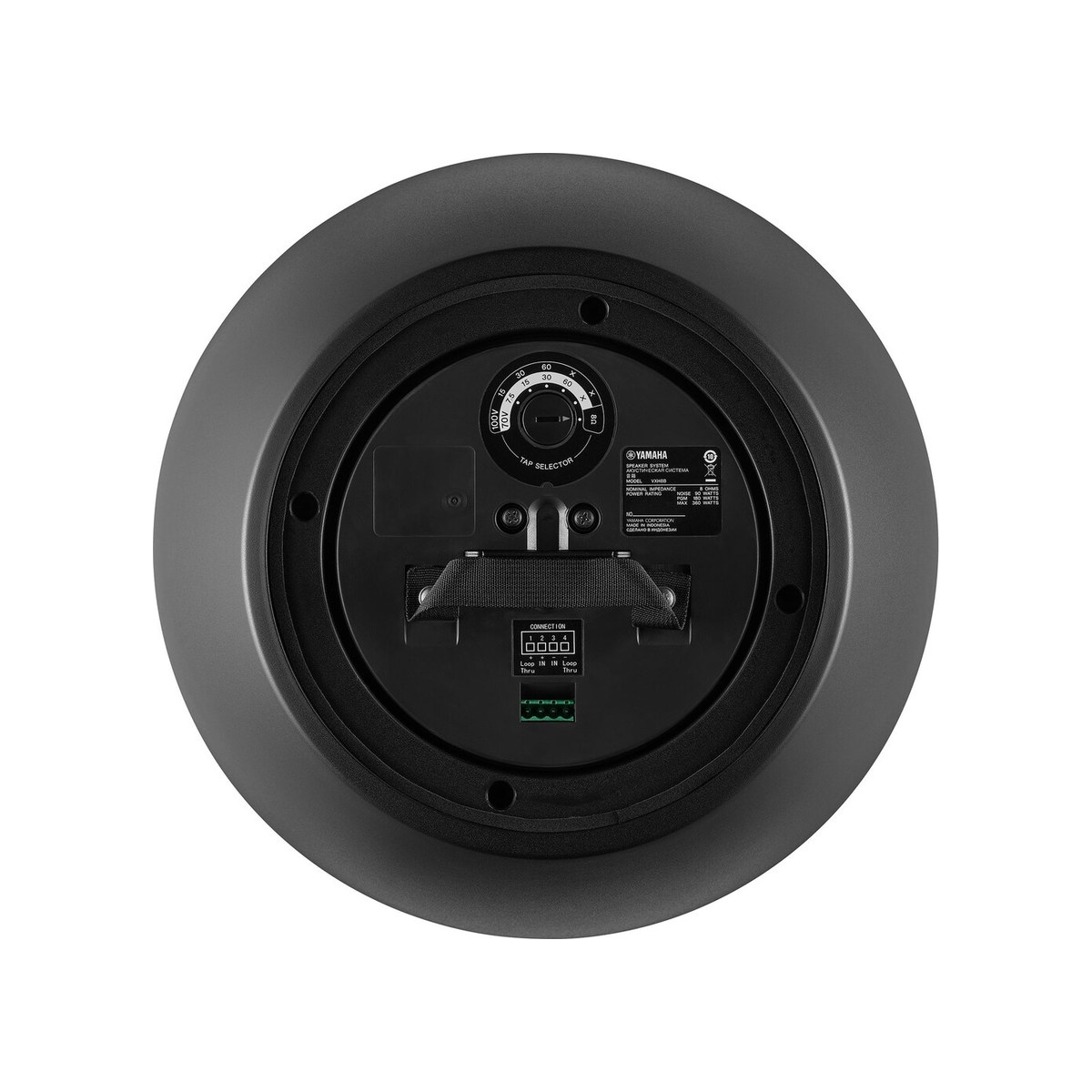

• I/O Connectors
  Euroblock 4P x1
• Protection Circuit
  Full-range power limiting
• Finish
  Black/White powder coating
• Diameter
  Ø356mm (14in)
• Depth
  434mm (17-3/32in)
• Net Weight
  7.2kg
• Dust/Water Resistant
  IP45
• Certificate
  UL1480A, NFPA70, CE, RoHS
