핵심 특징

상세 사양

• Speaker Type
  2-way, Bass-reflex
• Frequency Range(-10dB)
  51Hz-20kHz
• Nominal Coverage H
  100°
• Nominal Coverage V
  100°
• LF Component
  8" Cone
• HF Component
  1" Soft dome
• Crossover
  2.8kHz
• Power NOISE
  90W
• Power PGM
  180W
• Nominal Impedance
  8Ω
• Transformer 100V
  60W/30W/15W (170~670Ω)
• Transformer 70V
  60W/30W/15W/7.5W (83~670Ω)
• Sensitivity(1W,1m)
  91dB SPL
• Peak SPL(Calc)
  117dB SPL

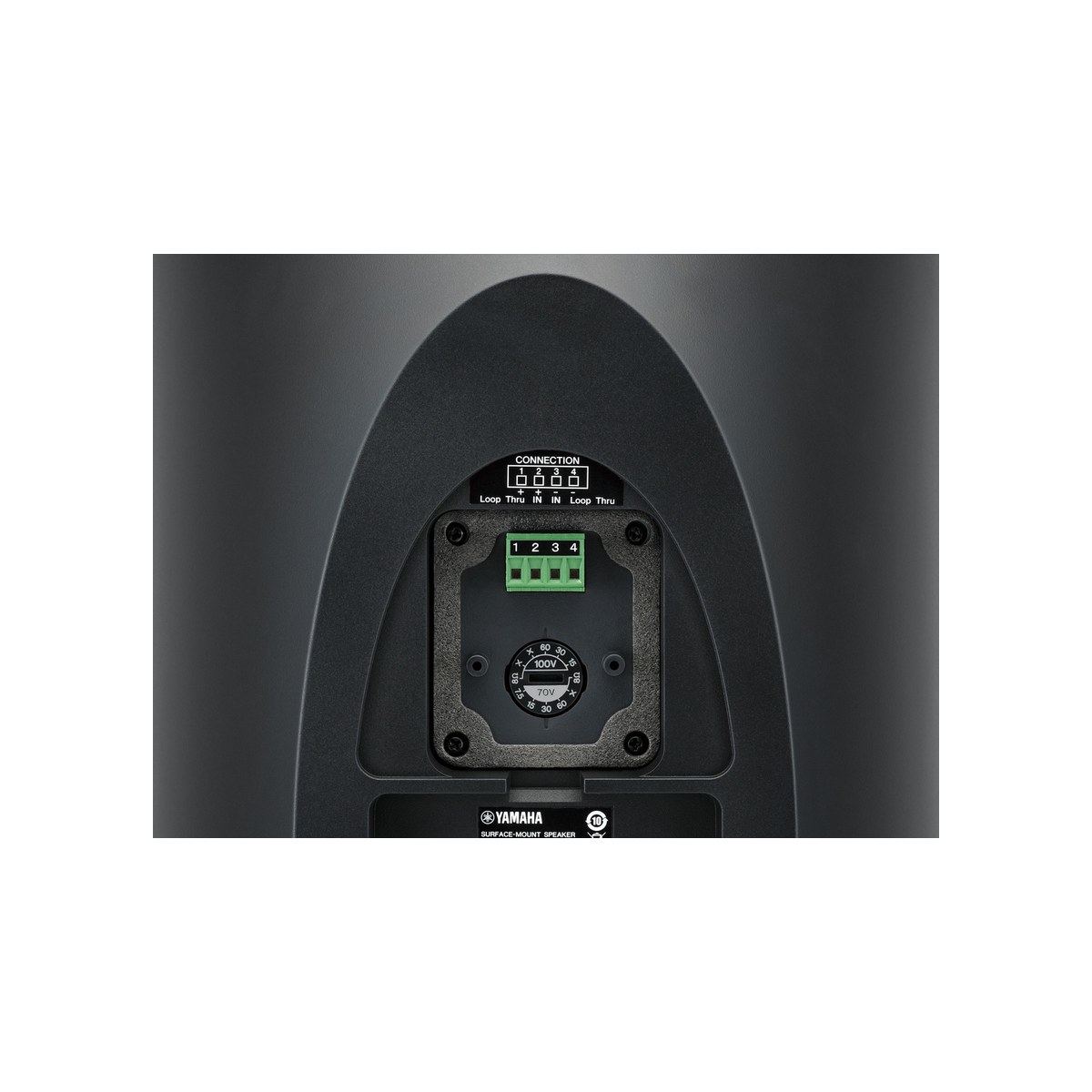

• I/O Connectors
  Euroblock 4P (Input/Loop Thru)
• Shape
  Rectangular
• Cabinet Material
  ABS
• Finish
  VXS8 Black / VXS8W White
• Waterproof
  IP35
• Dimensions(WxHxD)
  278x430x239mm (10.9x16.9x9.4in)
• Net Weight
  8.2kg (18.1lbs)
• Accessories
  Wall/Ceiling mount bracket, Terminal cover
• Others
  Packaged in pairs
• Certificate
  UL1480, NFPA70, CE, EAC, RoHS
